Welcome to a core topic in civil engineering. Every modern marvel, from Dubai’s towering skyscrapers to industrial complexes, relies on the strength and efficiency of the steel structure. As Engineer Adeel Arif, I believe understanding the properties, types, and design principles of structural steel is fundamental to our profession. This guide will decode the world of steel structure building, detailing components, grades, and their increasing importance in the UAE construction industry.

What is the Steel Structure? 🏗️

A steel structure is a metal framework made of connected structural steel components that carry loads and transmit them to the foundations. Structural steel is an iron alloy with a low carbon content (typically up to 2.1%), giving it superior strength, toughness, and ductility compared to other building materials.

• High Strength-to-Weight Ratio: Steel is incredibly strong, yet relatively lightweight. Consequently, it allows for smaller steel structure components and deeper spans, minimizing material consumption.
• Speed of Erection: Furthermore, steel components are prefabricated off-site. This significantly speeds up construction, reducing on-site labor and project time—a critical advantage in fast-paced markets like the UAE.
• Recyclability: Ultimately, steel is 100% recyclable. This makes it a highly sustainable material, supporting modern green steel structure design principles.

Understanding Types and Components

To design and build, you must first know the constituent parts. Every steel structure building is a complex assembly of beams, columns, and bracing.

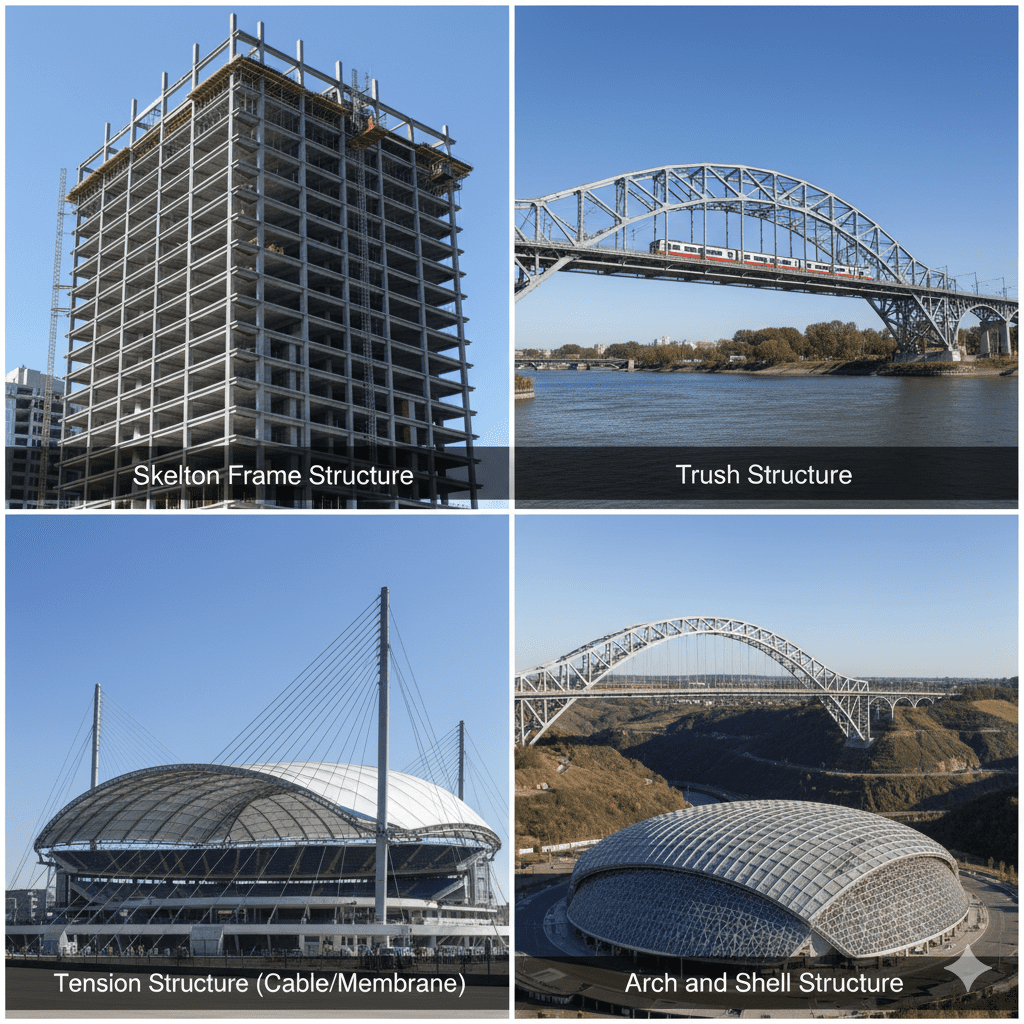

What are the four types of steel structures?

While steel is used in countless forms, structural engineers primarily categorize structures based on their connection methods and framing system:

1. Skeleton Frame Structure: This system uses vertical columns and horizontal beams to form a grid, carrying gravity loads. For instance, most high-rise commercial buildings, like those seen in our Museum of Future Dubai case study, rely on this frame.
2. Truss Structure: This framework consists of elements connected at nodes to form triangles, providing inherent stability. Bridges, roof systems, and long-span structures often utilize truss steel structure types.
3. Tension Structure (Cable/Membrane): These rely on tensile forces in cables or membranes to support the load. Think of stadium roofs or suspension bridges like those related to our Panama Canal Post.
4. Arch and Shell Structure: These structures use curved elements to transfer forces horizontally, providing immense strength over large, open areas like aircraft hangars or monumental architectural features.

Steel Structure Parts Name and Components

Every steel structure design relies on standardized shapes, collectively known as shape of steel.

• Columns: Vertical compression members (often Wide-Flange or H-beams).
• Beams: Horizontal flexural members (often I-beams or Universal Beams).
• Bracings: Diagonal members (like angles or channels) that resist lateral loads (wind or seismic forces).
• Purlins and Girts: Light secondary members used for supporting roof and wall cladding.
• Connections: Crucially, these are the Steel Structure components that join members, typically using bolts or welds.

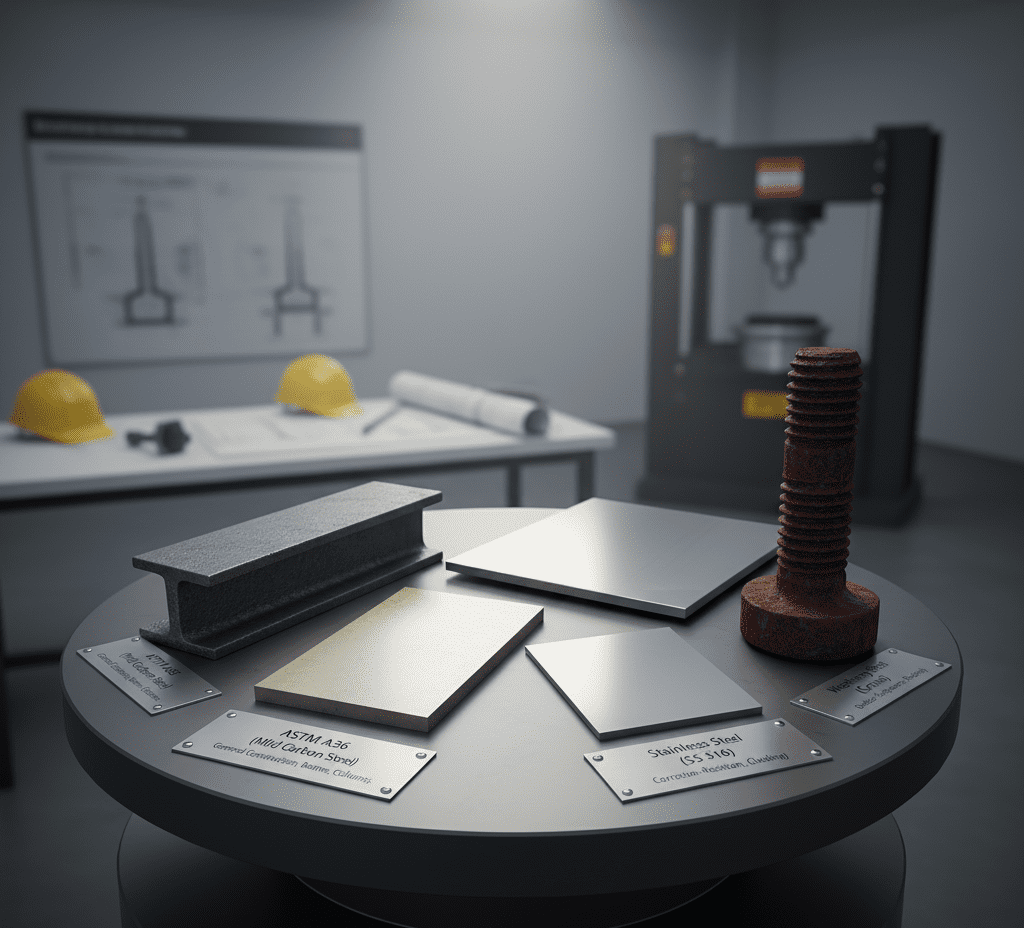

The Science of Steel Grades

The strength and application of the material depend entirely on its grade and chemical composition.

What are three types of steel?

From a metallurgical perspective, three types of steel dominate the industry:

1. Carbon Steel: This is the most common and cost-effective type, primarily used for most steel structure building frames (known as Mild Steel or MS).
2. Alloy Steel: This contains elements like nickel, chromium, or molybdenum, enhancing specific properties like corrosion resistance or high temperature strength.
3. Stainless Steel (SS): This contains at least 10.5% chromium, providing exceptional corrosion resistance. SS is widely used in corrosive environments, architectural cladding, and food-grade applications, contrasting starkly with the more common MS used for structural framing.

What is 3 grade steel?

Structural steel is primarily graded based on its minimum yield strength. The term “Grade 3 steel” usually refers to older standards or non-structural specifications.

• Modern Global Standards (Eurocode EN 10025): Today, we commonly use S275 and S355. The ‘S’ denotes Structural, and the number is the minimum yield strength in N/mm^2 (or MPa). S355 offers significantly higher strength than the older S235 grade.
• US Standards (ASTM): The ubiquitous standard for I-beams and H-beams is ASTM A992, while the general steel structure example is often A36 (36,000 psi yield strength).

Industry and Compliance in the Gulf

Which is the structural steel fabrication company in UAE?

The steel structure companies in UAE market is highly competitive and features world-class fabrication facilities. These companies provide essential services, from design detailing to complex Heavy Structure Production.

• Key Players: Major fabricators like ASSENT Steel Industries (Dubai) or ESC Steel Structures provide comprehensive services across the UAE. These companies are ISO certified and often hold compliance certifications for international standards like AISC (US) or Eurocode 3 (EN 1993).
• Role of Fabrication: Fabrication involves cutting, drilling, welding, and assembling the raw steel into ready-to-erect components. Precise work here is vital for smooth site installation.

Steel Structure Design: The Core Engineering Role

My work in structural steel design involves calculating loads, checking stability, and detailing connections. This requires expertise in the Core Branches of Civil Engineering.

• Load Calculations: We must account for gravity loads (dead and live loads), lateral loads (wind and seismic forces), and the thermal effects on the steel structure building.
• Design Standards: All steel structure design in the Gulf must comply with local authority requirements, often referencing international standards like Eurocode 3 or ANSI/AISC 360.

Conclusion and Next Steps

Steel structures are the backbone of the modern built environment. Their strength, speed of construction, and sustainability make them indispensable, especially in rapidly developing regions like the UAE. Understanding the specific steel structure types and grade properties allows us to design safer, more efficient, and cost-effective projects.
